Specifications:
| Features: |

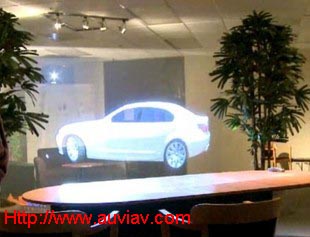

Clear, vivid picture, easy to installation, to be used in shops, window displaying, exhibitions, conference rooms, |
|
advertising displaying, banks, wedding photo studio, ticket center, restaurant etc. |
|
|
| Size: |
Max 100”(diagonal) for 4:3 format, |
|
Max 120”(diagonal) for 16:9 format. |
|
Customizable sizes are available. |
| Model: |
Rear T1 |
| Format: |
4:3, 16:9 and 16:10 etc. |
| Material: |
Transparent PET film |
| Style: |

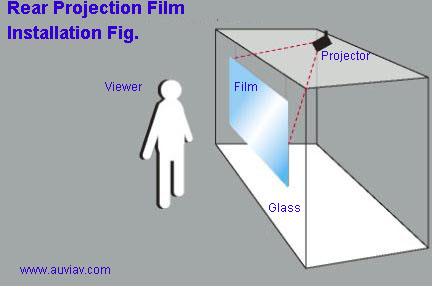

Rear type |
| Color: |
Transparent |
| Max Height: |
60"(1.524m) |
| Max Length: |
30m |
| Max Diagonal Size: |
120" 16:9 |
| Gain: |
2 |
| Light Transmission Rate: |
83% |
| View Angle: |
120° |
| Thickness: |
0.1mm |
| Weight: |
250g/square meter |
| Working Humidity: |
0~100% |
| Working Temperature: |
0°C~60°C |
| Hardness: |
3H |
| Contrast : |
200:1 |
| The Specifications of Projection Film |
|
| Items |
Unit |
White |
Transparent |
Gray |
Dark Gray |
Black |
| Thickness |
μm |
70 |
100 |
100 |
100 |
100 |
| Width |
m |
1.524 |
1.524 |
1.524 |
1.524 |
1.524 |
| Length |
m |
30 |
30 |
30 |
30 |
30 |
| Adhesive Layer |
- |
Yes |
Yes |
Yes |
Yes |
Yes |
| Transmission Rate |
% |
60 |
83 |
54 |
40 |
35 |
| View angle |
° |
150° |
120° |
120° |
160° |
170° |
| Contrast |
- |
300:1 |
200:1 |
300:1 |
500:1 |
800:1 |
| Hardness |
H |
2 |
3 |
3 |
3 |
3 |
| Features |
- |
High Definition |
Clear |
High Contrast |
High Contrast |
High Contrast |


|
